特点:
快速集中的中和静电;
小巧、精致、易操作;
连续风速调节、离子发生指示灯;
可作加热型风机;
离子针尖清洁毛刷。
Features:
Quickly neutralize static charges,
应用:
Build-in emitter cleaner,
Adjustable speed control for airflow,医药设备物造、组装生产线;
Indicator light for presence of ionization, 注射成型;
Integrated blower and power supply,小零加工。
Available in three kinds of installation,
Desktop,overhead and under shelf.

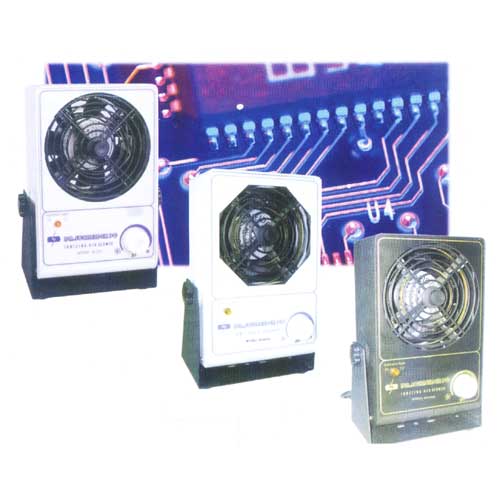

Bench Top Ionizing Air Blower
SL-001
(GH-2000、GH-3000)单用户型离子风机
Ionizing Air Blowers are the static elimination device which deliver a balanced
Ion stream to neutralize wide,focused areas.They remove contaminants attraction and
Neutralize static charges from wide,focused,or hard to reach areas so as to increase
Productivity
and
yield in manufacturing. They
are ideally
used in industrial
Environments such as delicate electronic products, electronic assembly line,mediacal
device manufacturing and assembly lines,printing,packaging,and small part injection
molding.
斯莱德SL-001(GH2000、GH3000)离子风机,可提供平衡离子气流的、宽范围集中区域的离子消除器。可消除或中和宽范围集中目标或不易接触区域的静电荷。是精密电子产品,电子组装,医药制造组装线,印刷,包装和细小产品成型的理想的静电消除器。
Specification(技术参数):
Operating Voltage(操作电压)110V/60HZ or 220V/50HZ
Crurrent Consumption(消耗电流)0.25A or 0.12A
Operating Temperature(操作温度)0~50℃
Size(外型尺寸)90mm(L)×170mm(W) ×260mm(H)
Weight(重量)3kg
Air Volume(风量)45~110CFM
Offset Voltage(残余电压)0V±5V
Air Coverage(气流面积)40cm×60cm
每个区域的静电消除时间小于10秒;
高低表示风速大小,散电时间为EOS/ESD校准,由1000V-100V测试。
Decay Test Results(测试结果):
Testing Conditions(测试条件)
Testing Voltage(测试电压):1KV to 100V
Operating Voltage(操作电压):110V/220V
Temperature(环境温度):22℃
Distance(距离):300mm600mm900mm
Decay time
(中和时间)Positive(正)1.0s2.1s3.7s
Negative(负)1.0s2.5s3.8s
Offset voltage
(残余电压)Positive(正)5v5v4v
Negative(负)4v4v3v
Remarks:
1.Distance measured in mm,decay time measured in seconds.
2.Test data available by using ME268A Charged Plate Analyzer.
3.Test figures are subject to the variation in the atmospheric conditions.
