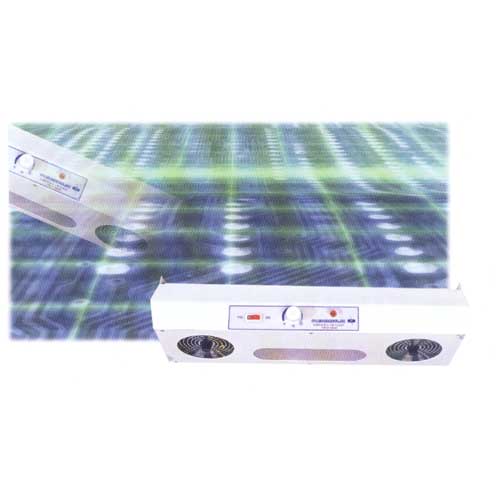

Bench Top Ionizing Air Blower
SL-002悬挂式离子风机
Ionizing Air Blowers are the static elimination device which deliver a balanced
Ion stream to neutralize wide,focused areas.They remove contaminants attraction and
Neutralize static charges from wide,focused,or hard to reach areas so as to increase
Productivity
and
yield in manufacturing. They
are ideally
used in industrial
Environments such as delicate electronic products, electronic assembly line,mediacal
device manufacturing and assembly lines,printing,packaging,and small part injection
molding.
斯莱德SL-002离子风机,可提供平衡离子气流的、宽范围集中区域的离子消除器。可消除或中和宽范围集中目标或不易接触区域的静电荷。是精密电子产品,电子组装,医药制造组装线,印刷,包装和细小产品成型的理想的静电消除器。
Features:
特点:
Tow airflow output,
二束离子风输出;
Adjustable speed control for airflow,风速连续可调;
Integrated blower and power supply.
内置风机和电源供应器。
Specification(技术参数):
Operating Voltage(操作电压)110V/60HZ or 220V/50HZ
Crurrent Consumption(消耗电流)0.9A or 0.4A
Operating Temperature(操作温度)0~50℃
Air Coverage(气流覆盖面积)40cm×90cm
Size(外型尺寸)610mm(L)×180mm(W) ×120mm(H)
Weight(重量)8kg
Air Volume(风量)80~220CFM
Ion Balance(离子平衡)0V±5V
Decay Test Results(测试结果):
Testing Conditions(测试条件)
Testing Voltage(测试电压):1KV to 100V
Operating Voltage(操作电压):110V/220V
Temperature(环境温度):22℃
Distance(距离):300mm60mm900mm1200mm
Left 300mm (左300mm)0.7s2.1s3.2s4.0s
Center(中心)0.6s1.9s2.5s3.5s
Right 300mm(右300mm)0.7s2.0s2.9s3.9s
Remarks:
1.Distance measured in mm,decay time measured in seconds.
2.Test data available by using ME268A Charged Plate Analyzer.
3.Test figures are subject to the variation in the atmospheric conditions.
